Full Scale Wind Tunnel

The Stellantis wind tunnel facility in Orbassano is a closed circuit type with ¾ open jet test section, and a 30.5m2 or 20 m2 nozzle cross section. It's equipped with a rolling road simulator (5 belts configuration) and can reach a max speed of 210 kph

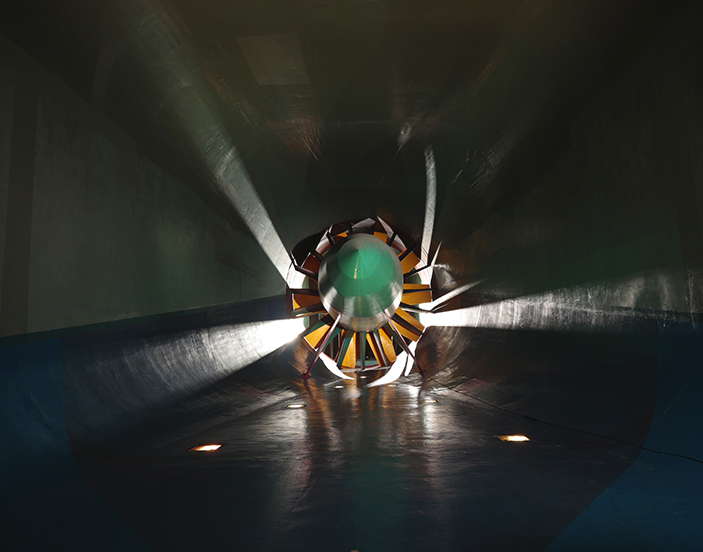

Photo of propeller in wind tunnel

More information

Initially built in the 70s, since 2014 a new road simulation system has been installed, in a "5-belts" configuration: a central belt, 6 meters long, 1.1 meters wide and four wheel rotation units. At the same time, a new main balance was installed, integrated with the Rolling Road System (RRS). This configuration is considered the best compromise between flow simulation and efficiency to manage the installation of the vehicle. This update has significantly improved the quality of the field simulation in the lower part of the vehicle, with more correct and realistic results.​

210 km/h

Max Speed

4000 kg

Max static vehicle weight

3600 mm

Max vehicle wheelbase

Main activities

  • Aero forces and coefficients,fixed and floating mode, yaw sweep​
  • Automatic ride height maps​
  • Wheels ventilation drag​
  • Surface pressure​
  • Flowfield investigations / wakes​
  • Moving parts deformation​
  • Aerodynamic noise inside the cabin
  • External shape noise, side and top​
  • Frontal area​
  • 3D vehicle shape scanning​

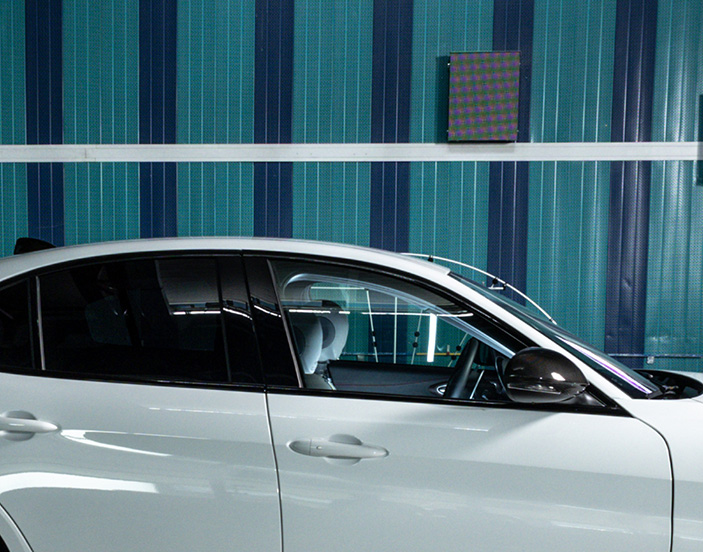

Alfa Romeo Giulia body side photo in fullscale aerodynamic tunnel

Technical sheet

  • Göttingen closed circuit ¾ open jet test section in operation since 1976​​
  • Nozzle Exit Area = 31 m2 and 20 m2​
  • Test Section Width x Height x Length = 12.2 m x 10.8 m x 10.5 m​
  • Turntable Diameter = 7 m​​
  • Rolling Road Simulation: 5 belt system (center belt 6 m lenght and 4 WSU), max speed 250 kph​
  • Maximum Flow Speed = 190 kph and 212 kph​
  • Boundary Layer Control: Upstream distributed suction​​
  • Boundary Layer Thickness at balance centre d99% < 5 mm (d* < 0.5 mm)​
  • Turbulence Intensity at section center< 0. 9%​
  • Acoustic treatment: Test section walls, Corner vanes​
  • 3-axle Transversing (pressure probes, hot wire anemometer, PIV 3D)​
  • WLTP certification by UTAC​

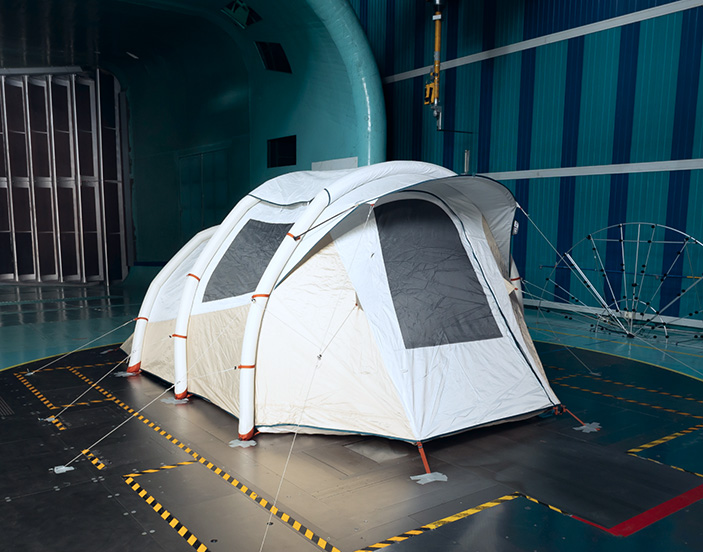

Photo of a tent in a wind tunnel
